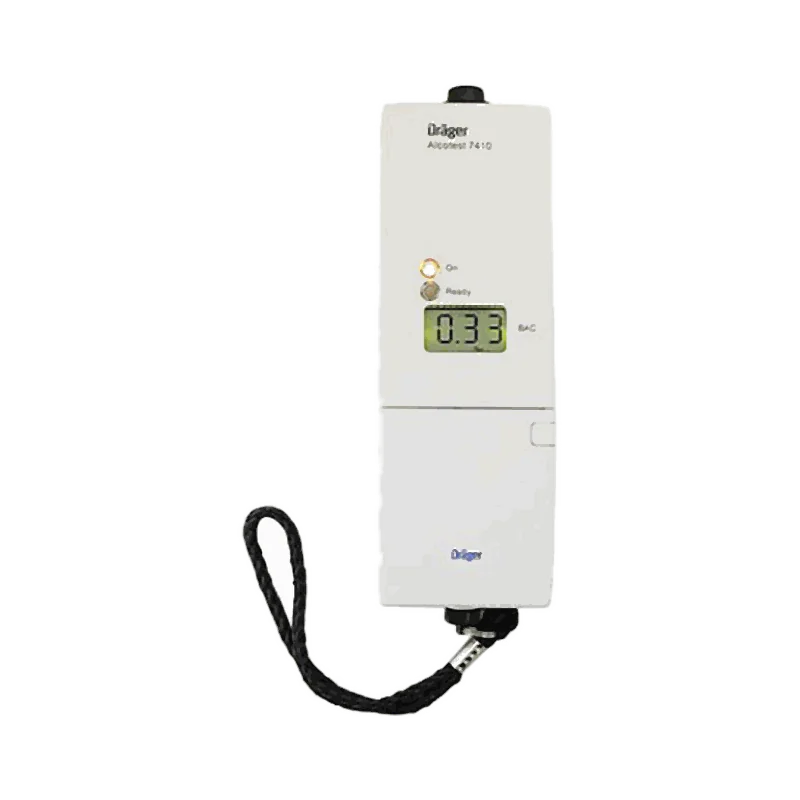

Dräger Alcotest® 7410 — breathalyzer (breath analyzer)
The Dräger Alcotest 7410 is a portable breath analyzer (breathalyzer) from Dräger, offered in versions with a printer or with a cable and PC software. It provides fast measurement readiness, a full-text display, a clock with date and time, and passive measurement. Extended memory stores up to 10,000 results with date and time, and the RS-232 port together with the VIEW 2000 program enables data archiving on a computer.
The Dräger Alcotest 7410 is a portable breath analyser (breathalyser) from Dräger, offered in variants with a printer or with a cable and PC software. It provides fast measurement readiness, a full-text display, a clock with date and time, and passive measurement. The extended memory stores up to 10,000 results together with date and time, while the RS-232 port and the VIEW 2000 program enable data archiving on a computer.
Note: An older-generation model (SafeTech archival documentation). The current successor in the Dräger range is the Alcotest 7510 — it is worth considering it in the catalogue instead of/alongside the 7410. Parameters marked „to be confirmed” should be verified against the current Dräger manufacturer datasheet.
Key features
- Fast measurement readiness — first measurement after approx. 15 s.
- Full-text display; clock with date and time.
- Passive measurement („present / not present” detection from a distance).
- Memory for up to 10,000 results (date, time, result).
- RS-232 port; archiving with the VIEW 2000 program (optional).
- Warning about remaining measurements and reduced power consumption.
Technical specifications
| Parameter | Value |
|---|---|
| Type | breath analyser (breathalyser), portable |
| Sensor | electrochemical (DrägerSensor) — to be confirmed in the manufacturer datasheet |
| Measuring range | 0–0.5% BAC (0–5‰) |
| Accuracy | per NHTSA: ±0.005% BAC or ±5% of the value; DrägerSensor electrochemical sensor |
| Measurement readiness | approx. 15 s (first measurement) |
| Display | full-text; clock with date and time |
| Measurement mode | active and passive |
| Memory | up to 10,000 results (date, time, result) |
| Port / software | RS-232; VIEW 2000 archiving (optional) |
| Dimensions / weight | 147 × 65 × 39 mm; approx. 259 g (with batteries) |
| Power supply | 2 × 1.5 V (AA) alkaline or NiMH rechargeable batteries |
| Calibration | periodic — in accordance with the manufacturer's recommendations |
Applications
Sobriety checks of employees, services, transport and fleet, workplaces.
Frequently asked questions (FAQ)
How much memory does the Alcotest 7410 have?
Up to 10,000 measurement results together with date and time; data can be archived via RS-232 and the VIEW 2000 program.
How quickly is the Alcotest 7410 ready to measure?
The first measurement is ready after about 15 seconds.
Is the 7410 still in production?
This is an older-generation model. The current successor in the Dräger range is the Alcotest 7510 — we will gladly help you select the right model.
Brand & service
Dräger — SafeTech is a distributor of Dräger products: selection, calibration and service.
Why SafeTech
- 23 years of experience in gas detection (the company has operated since 2003).
- Authorised distributor and authorised service station (including Honeywell, Bieler+Lang).
- In-house service, calibration, certification and adjustment in Suchy Dwór near Gdynia — service across Poland.
- Training and technical support (SafeTech Safety Academy).
Availability & service — Gdynia and Tricity
Dräger Alcotest® 7410 — breathalyser (breath analyser) — sales, selection, calibration and service in Gdynia (Suchy Dwór, on the border of Gdynia and the Kosakowo municipality). We serve the Tricity (Gdańsk, Sopot, Gdynia), Rumia, Reda, Wejherowo, the Pomerania region and all of Poland. Ask about pricing and availability.
