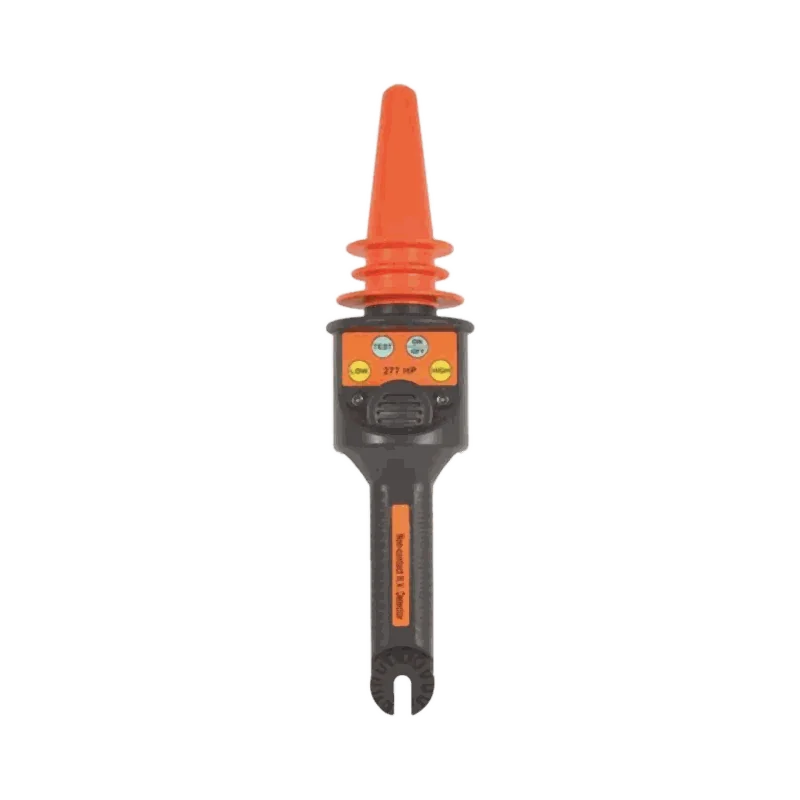

HOYTMETER 277 HP — non-contact AC voltage detector (50 V – 132 kV)
The HOYTMETER 277 HP is a non-contact alternating-current (AC) voltage detector for detecting voltage in electrical conductors, equipment, sockets and switches. It works in two ranges — LOW (50 V – 1.5 kV) and HIGH (1.5 kV – 132 kV) — and alerts the operator with audible and visual signals; the signal frequency increases as you approach the voltage source. Lightweight and powered by a 9 V battery, it suits both industry and emergency services.
The HOYTMETER 277 HP is a non-contact AC voltage detector for detecting voltage in electrical conductors, equipment, sockets and switches. It operates in two ranges — LOW (50 V – 1.5 kV) and HIGH (1.5 kV – 132 kV) — and informs the operator with an audible and light signal; the signal frequency increases as you approach the voltage source. Lightweight and powered by a 9 V battery, it works well both in industry and in emergency services.
Key features
- Non-contact detection of AC voltage (50–60 Hz).
- Two ranges: LOW 50 V – 1.5 kV and HIGH 1.5 kV – 132 kV.
- Audible and light signal; frequency increases as you approach the source.
- Lightweight (approx. 227 g), powered by a single 9 V battery.
- Compliance with EN 61326-1 and EN 61000-4-2/-3 standards.
- For conductors, equipment, sockets and switches.
Technical specifications
| Parameter | Value |
|---|---|
| Type | non-contact AC voltage detector (AC, 50–60 Hz) |
| Operating range | LOW: 50 V – 1.5 kV · HIGH: 1.5 kV – 132 kV |
| Signaling | audible and light; frequency increases as you approach the source |
| Recommended operating temp. | −10…+50°C |
| Dimensions | 318 × 75 × 71 mm |
| Weight (with battery) | approx. 227 g |
| Power | 1 × 9 V battery (included) |
| Standards | EN 61326-1; EN 61000-4-2; EN 61000-4-3 |
Applications
Energy and maintenance, industry, technical services, inspection of electrical installations (conductors, equipment, sockets, switches).
Frequently asked questions (FAQ)
What voltage range does the HOYTMETER 277 HP detect?
Two ranges: LOW from 50 V to 1.5 kV and HIGH from 1.5 kV to 132 kV of alternating current.
How does the 277 HP signal voltage?
With an audible and light signal; the signal frequency increases as you approach the voltage source.
How is the 277 HP detector powered?
By a single 9 V battery, included in the set. The detector weighs about 227 g.
Brand & service
Available from SafeTech: delivery, expert technical advice and service. Model selection to match working conditions and voltage range.
Why SafeTech
- 23 years of experience in safety and detection technology (in business since 2003).
- Supply, expert technical advice and equipment selection for your application.
- In-house service and technical support in Suchy Dwór near Gdynia — service across Poland.
- Training and technical support (SafeTech Safety Academy).
Availability & service — Gdynia and Tricity
HOYTMETER 277 HP — non-contact AC voltage detector (50 V – 132 kV) — sales, selection, calibration and service in Gdynia (Suchy Dwór, on the border of Gdynia and the Kosakowo municipality). We serve the Tricity (Gdańsk, Sopot, Gdynia), Rumia, Reda, Wejherowo, the Pomerania region and all of Poland. Ask about a quote and availability.
